What is a Double-Sided PCB?

A Double-Sided PCB (Printed Circuit Board) is a type of circuit board that has copper conductive layers on both sides of the substrate. Unlike single-sided PCBs, which only have one conductive layer, double-sided PCBs allow electrical connections on both the top and bottom layers through vias (plated through-holes).

These PCBs support higher component density than Single-sided PCB, improved circuit performance, and more efficient power distribution. At MultPCB, we specialize in high-precision, high-quality double-sided PCBs tailored to your specific needs.

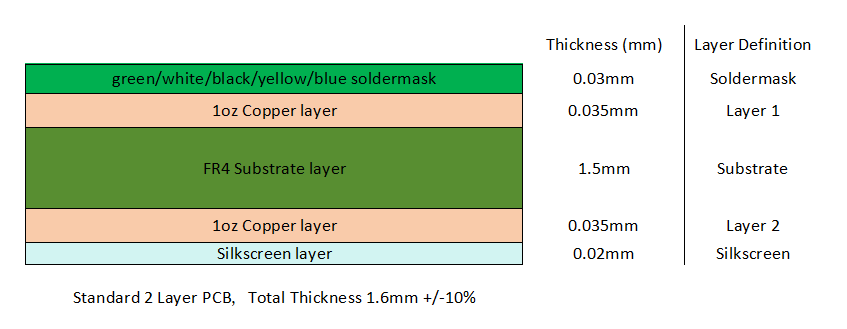

Standard Double-sided PCB Stack-up Structure

Advantages and Disadvantages of Double-sided PCB

Advantages:

• Increased Circuit Density

• Improved Electrical Performance

• Cost-Effective Alternative to Multilayer PCBs

• Enhanced Flexibility in Design

• Widely Used in Various Industries

Disadvantages:

• More Complex Manufacturing Process

• Higher Cost than Single-Layer PCBs

• Limited Performance Compared to Multilayer PCBs

• More Challenging Repair and Troubleshooting

MultPCB Double-sided PCB Capabilities

FeatureDetails
Base MaterialFR4, Aluminum, Rogers, Polyimide
Layer Count2
Board Thickness0.2mm – 3.2mm
Copper Thickness1oz – 6oz
Surface FinishesHASL, HAL Rohs, ENIG, Immersion Silver, OSP
Min. Line Width/Spacing3mil/3mil
Min. Drill Hole Size0.2mm
Impedance ControlYES
Solder Mask ColorsGreen, Blue, Black, White, Red, Yellow
Testing MethodsAOI, E-test, Flying probe test
Lead TimeFast turnaround 1-5days,  Standard 5–7 days,  volume order 8-15 days depend on quantity
Component MountingSurface Mount Technology (SMT) and Through-Hole Technology (THT)

How to Produce A Double-sided PCB?

Manufacturing a double-sided PCB involves several precise steps to ensure functionality, reliability, and durability. Here’s a step-by-step guide to the double-sided PCB production process:

StepsDescription
Design and LayoutCreate a schematic and layout; generate Gerber files, DFM analysis to detect errors before production
Material SelectionChoose substrate (FR4), copper foil (Usually 1-3oz), solder mask, and silkscreen material.
Drilling ProcessCNC drilling machines create holes for vias and through-hole components
Hole Metallization (Plating Through-Hole – PTH)Electroless copper deposition coats the hole walls, creating electrical connections between layers.
Circuit Pattern ImagingA light-sensitive film (photoresist) is applied to both sides, then UV Exposure & Development.
EtchingUnwanted copper is chemically removed, leaving the designed circuit pattern.
Solder Mask Printing A solder mask layer is applied to protect the copper traces from oxidation and short circuits.
Silkscreen PrintingPrint labels, component markings, and logos. ( Black and White)
Surface FinishApply surface finish to copper pads (HASL, ENIG, OSP).
Profiling and CuttingCut the PCB to its final shape and size. (Panel and single piece form)
Electrical TestingOpen and short circuits testing,  AOI and E-Test
Inspection and PackagingInspect the final PCB boards, clean it, and prepare for shipment.

Double-sided PCB production is a highly precise and multi-step process that ensures quality, durability, and performance.

Applications of 2 layer PCB

Double-sided PCBs are widely used in various industries due to their cost-effectiveness, higher circuit density, and versatility. Here are some of the key applications:

Consumer Electronics

  • Smartphones, Tablets, and Laptops – Used in internal circuits for efficient power distribution.
  • Home Appliances – Found in TVs, washing machines, air conditioners, and refrigerators.
  • Wearable Devices – Smartwatches and fitness trackers use compact double-sided PCBs.




Industrial Control Systems

  • Automation Equipment – Used in PLCs (Programmable Logic Controllers) and industrial sensors.
  • Power Supplies – Found in voltage regulators, UPS systems, and power converters.
  • Motor Controllers – Used in robotics, CNC machines, and factory automation.




LED Lighting Systems

  • LED Drivers & Controllers – Used in smart LED lighting systems.
  • Automotive & Commercial LED Displays – Applied in streetlights, billboards, and traffic signals.




Automotive Electronics

  • Car Dashboards & Infotainment Systems – Used in display units and control circuits.
  • Engine Control Units (ECU) – Helps manage fuel injection and ignition timing.
  • Vehicle Lighting Systems – Includes headlamps, brake lights, and indicator circuits.




Medical Devices

  • Diagnostic Equipment – ECG, X-ray machines, and MRI systems.
  • Wearable Health Devices – Blood pressure monitors and glucose meters.
  • Medical Imaging Systems – Used in high-precision scanning devices.




Telecommunications

  • Routers & Modems – Used in networking and broadband communication.
  • Antennas & RF Systems – Essential for signal transmission and reception.
  • Satellite Communication Systems – Found in high-frequency RF applications.




Aerospace & Defense

  • Navigation & Radar Systems – Used in GPS tracking and surveillance equipment.
  • Aircraft Control Systems – Helps in aviation electronics and in-flight entertainment.
  • Military Communication Equipment – Used in encrypted communication devices.



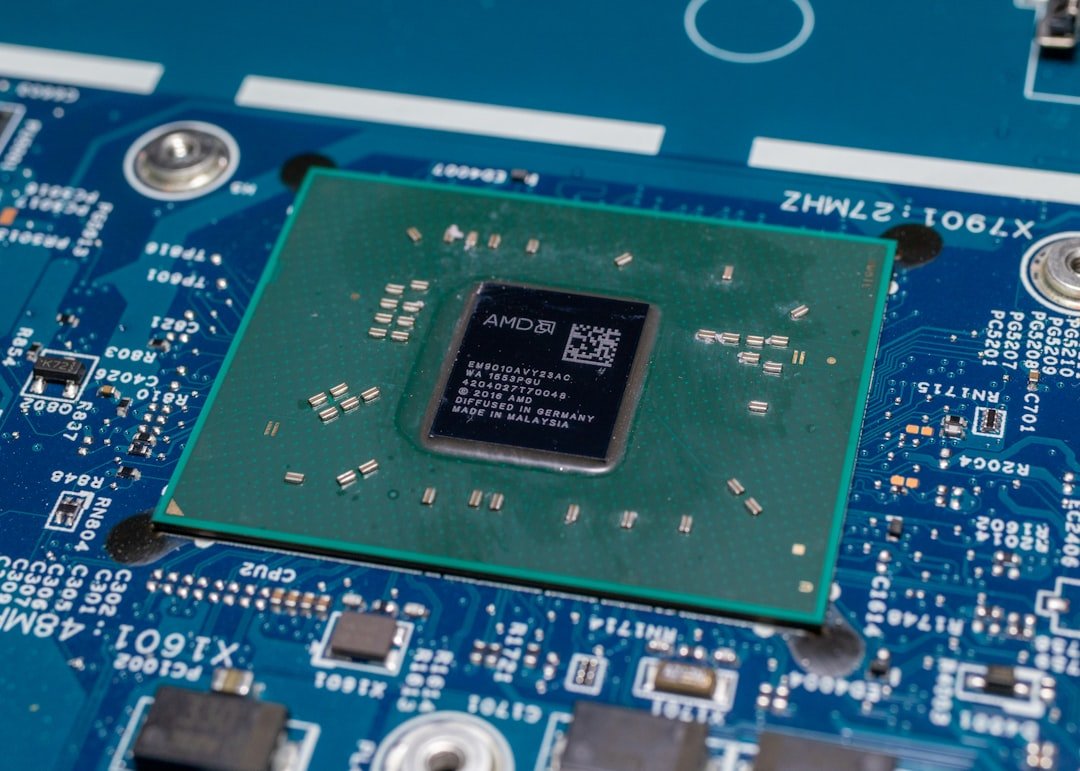

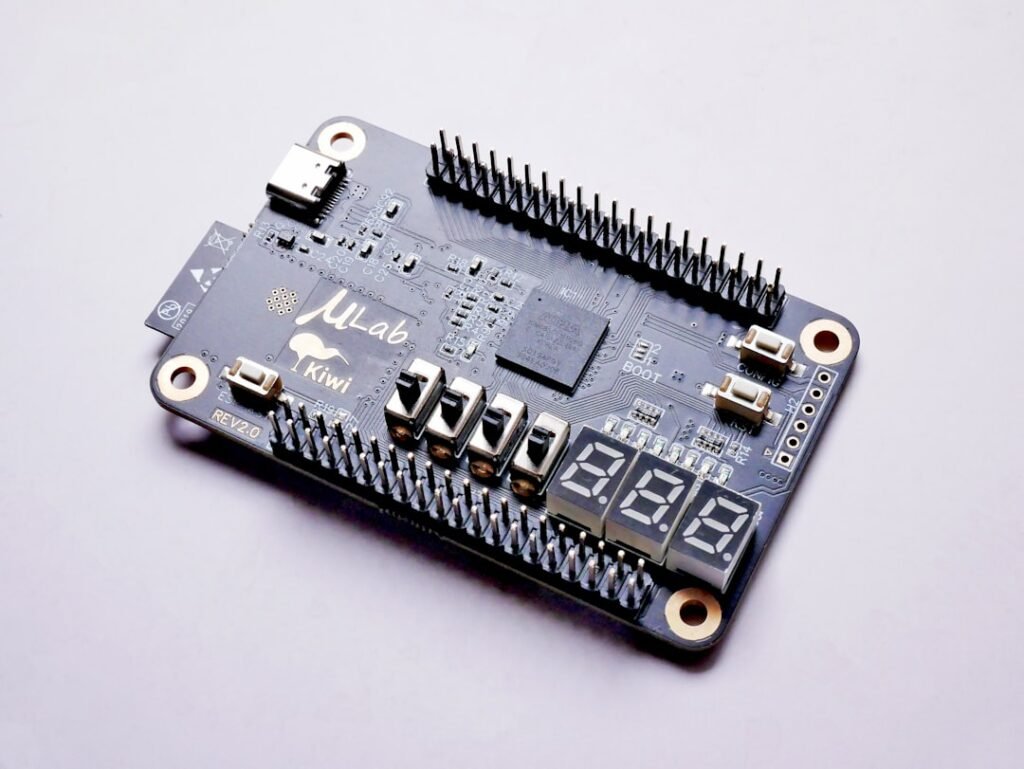

Double layer PCB cases
